General info

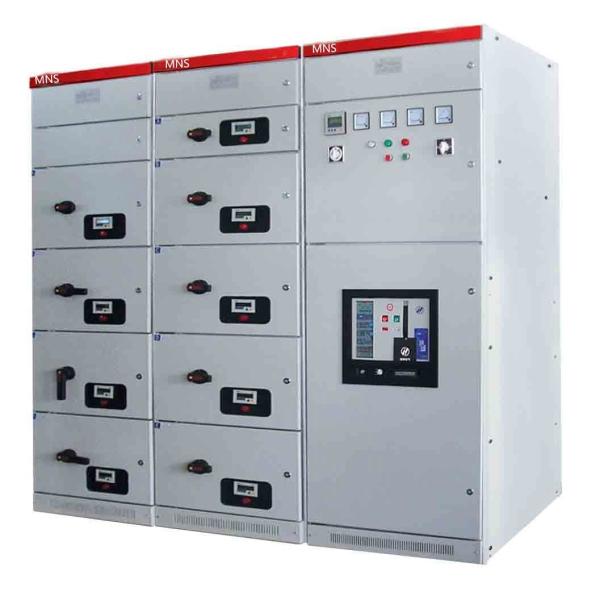

MNS low voltage withdrawable switchgear is a combined low-voltage switchgear, which meets the standards of IEC439, GB7251 and so on.
With high technical performance, main parameters can reach the contemporary international advanced technology level.
This series of Low-voltage Withdrawable Switchgear is a combined type cabinet (FBA) assembled
Rated insulation voltage 600-1000v
Rated working voltage 380-660v
Level busbar current rating ≤3150A
Nominal current of vertical bus 1200A
Rated short-time peak current 105KA
Protection grade IP30/IP40/IP54
Drawing
Structural features:
The product design has fully considered the requirements of the majority of power users and design departments, which can meet the needs of the developing power industry such as the centralized control of capacity increase power, convenient installation and maintenance, and shortened accident treatment time, etc., which is safe, economical, reasonable and reliable.The product has the characteristics of strong connection ability, high breaking ability, good dynamic stability, flexible electrical scheme, convenient combination, strong series and practicability, novel structure and so on.At the same time, it can be combined with drawers and cabinets for mixed use.
Switch cabinet cabinet structure is composed of profiles (module E=25mm) assembly.As a result of using lock since tapping screw and 8.8 class high strength bolt for connection, thus high precision cabinet, good patience.
Details
Service conditions
◎ Ambient airtemperature should be within -5°C~+40°C, average temperature within 24h should not exceed +35°C.
◎ Atmospheric conditions: air should be clean. Relative humidity should not exceed 50% at +40°C, higher relative humidity is allowed at lower temperature condition, for instance, 90% at +20°C, please take measures for the dew produced on the product caused by temperature change occasionally.
◎ Altitude: not exceed 2000m.
◎ Ambient temperature for storage and transportation: -25°C~+55°C, short time (usually not beyond 24h) highest temperature not exceed 70°C. The product should not be subject to any irreversible damage underthe extreme temperature and should be able to work normally underthe normal conditions.
order instruction:
1. Schematic diagram of main circuit or electrical schematic diagram
2. Arrangement and layout
3. Model, specification and quantity of main components.
4. Incoming and outgoing wire method and cable specification, etc
5. If bus connection is required between the devices, bus connection and height from the ground shall be provided.
6. Other ordering requirements
