hfy-substation 70 mva 500kva 1000kva 1600 kva 2000kva 5000kva oil immersed transformer

Name: hfysubstation 70 mva 500kva 1000kva 1600 kva 2000kva 5000kva oil immersed transformer
Brand: HENGFENGYOU
Price: 200 USD

China hfy-substation 70 mva 500kva 1000kva 1600 kva 2000kva 5000kva oil immersed transformer factory

Brand Name : HENGFENGYOU

Model Number : S-10

Certification : ISO IEC CB COC KEMA SNI SABS CCC

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 2000 Piece/Pieces per Month

Delivery Time : 15 DAYS

Packaging Details : wooden case

Material : Copper

Coil Structure : Toroidal

Transformer type : Oil immersed transformer

Frequency : 50Hz or 60Hz

Standard : KPLC/REA/PEC

Price : 200-200000/piece

Contact Now

Electric Oil-immersed Transformer 10kv low loss 50kVA oil transformer manufacturer S11-M-500/20

6.3kv,6kv,10kv,11kv,15kv,13.8kv 20kv,22kv,33kv or 35kv three phase Oil immersed distribution power transformer manufacturer in China Power grid electric transformer

1)IEC60076,ISO,CCC,Type test report

2)Top 3 and more than 23 Years' experience

3)Sold to Malaysia,HK,Ethiopia, Mozambique, Kenya, Congo, Philippines,Nigeria,HK......and so on

hfy-substation 70 mva 500kva 1000kva 1600 kva 2000kva 5000kva oil immersed transformer

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

10KV Grade Amorphous Metal Oil-immersed Transformer S(B)H15-M-30~1600/10 series
Rated Capacity	Voltage Combina -tion		Connec -tion Method	Loss(W)		No Load Current(%)	Impend -ence Voltage (%)	Weight	Dimension(mm)
(KVA)	HV (KV)	LV (KV)	Connec -tion Method	No Load	Load (75℃)	No Load Current(%)	Impend -ence Voltage (%)	(Kg)	(L×W×H)
30	11 10.5 10 6.3 6	0.4	Dyn11 Yyn0	33	630/600	1.5	4	410	920×850×830
50				43	910/870	1.2		520	1040×780×870
63				50	1090/1040	1.1		570	1010×810×880
80				60	1310/1250	1.0		640	1060×830×910
100				75	1580/1500	0.9		750	1140×830×860
125				80	1890/1800	0.8		830	1110×880×950
160				100	2310/2200	0.6		940	1130×880×1000
200				120	2730/2600	0.6		1090	1240×900×1020
250				140	3200/3050	0.6		1250	1290×900×1070
315				170	3830/3650	0.5	4.5	1470	1380×840×1110
400				200	4520/4300	0.5		1710	1420×920×1250
500				240	5410/5150	0.5		1990	1360×1040×1180
630				320	6200	0.3		2390	1530×1120×1310
800				360	7500	0.3		2760	1880×1210×1360
1000				450	10300	0.3		3240	2040×1520×1360
1250				530	12000	0.2		3820	2140×1520×1430
1600				630	14500	0.2		4620	2260×1540×1500

hfy-substation 70 mva 500kva 1000kva 1600 kva 2000kva 5000kva oil immersed transformer

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?.

A: Generally it is 10-15 days if the goods are in stock. Or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Can your product be customerized ?

A: Yes. We can accept customized product.
 Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions, our product can be customerized according to your requirements

Q: How do transformers been shipped?

A: Transformers always been deliveried by ship,train or truck for oversea.Which with main active body in bulk and accessories in wooden cases..

Q: What kind of internation certificates do you have?

A: We have authoried ISO9001, ISO14001, OHSMS18001 and CQC

Q: Do you have single phase transformer?

A: Yes, we produce the single phase transformer. And also offer the iron accessories for sale. If there is any requirement, pls feel free contact us.

hfy-substation 70 mva 500kva 1000kva 1600 kva 2000kva 5000kva oil immersed transformer

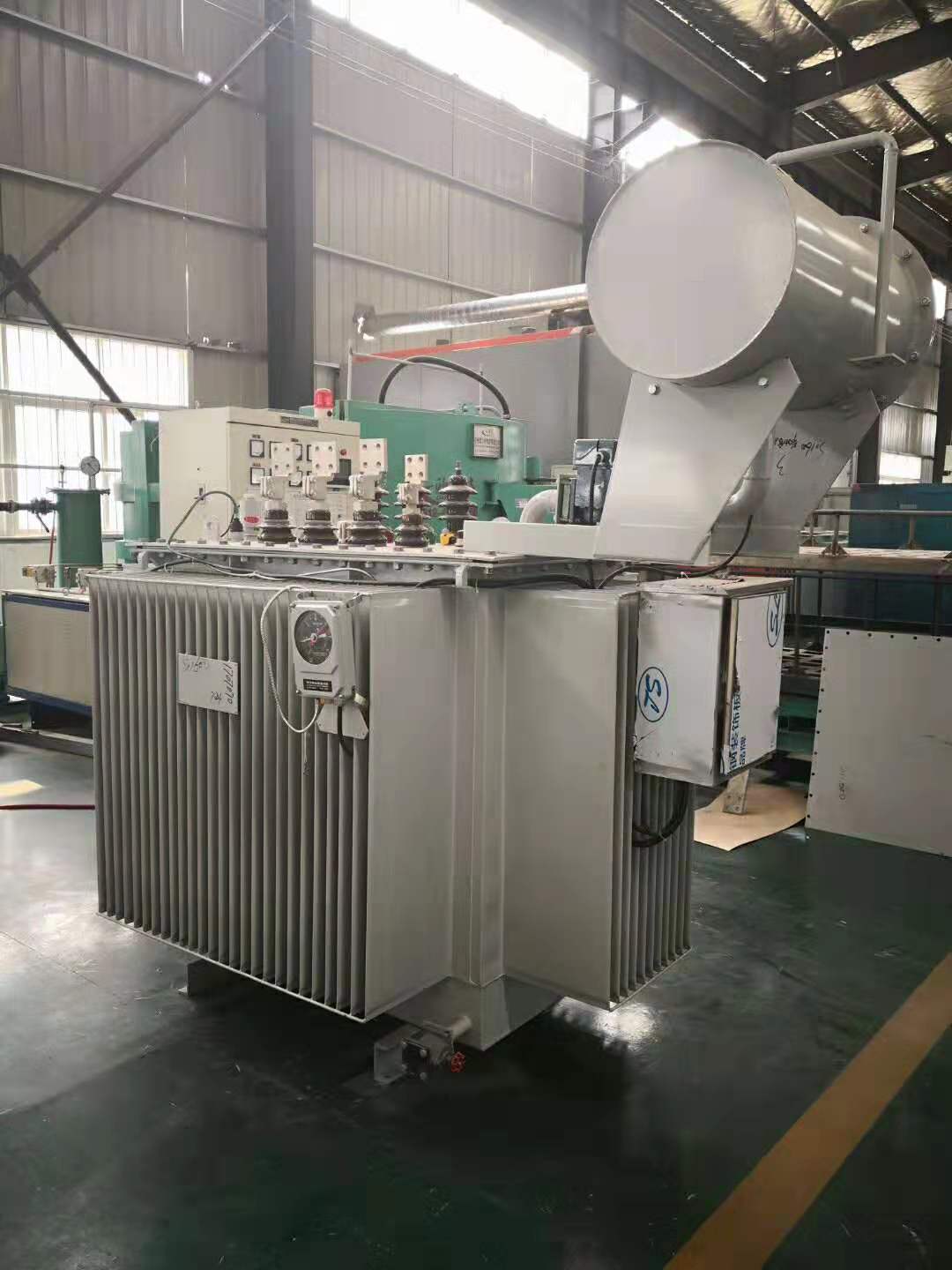

hfy-substation 70 mva 500kva 1000kva 1600 kva 2000kva 5000kva oil immersed transformer Images
